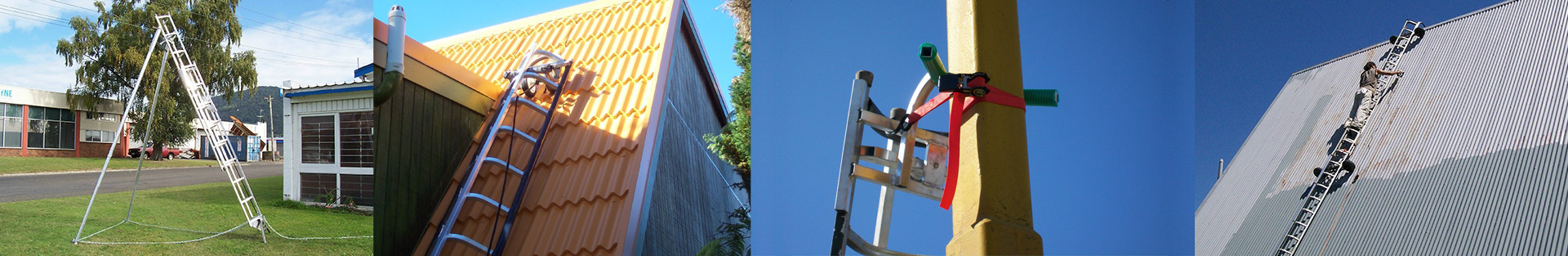

A third rail provides considerable additional strength and the curved rung provides foot support reducing fatigue. The self-levelling foot ensures a reduced risk of slide fall giving increased stability on curved structures, corners, poles, tree trunks and other unusual shaped objects.
Meeting the worksafe standards for working safely at height, a ClimbSafe Pro ladder has increased stability, rigidity and is easier to handle.
A
cost effective safety solution for working at heights, a ClimbSafe Pro ladder is the Gold Standard in portable climbing frames and offers a 5 year manufacturer’s warranty. This patented adjustment system complies with all industry standards.
Click here to view the Engineer’s report. or
Click here to Download the Technical brochure
|
The ClimbSafe Pro is a 3D climbing frame with many fit for purpose accessories including: |
|
Factory fitted rubbing strip Tripod free standing attachment Hook over unit Combination stand-off & hookover unit 1.8m plug on extension Scaffold & bucket attachment Roof rolling kit |
Ladder sizes |
|
|
Fixed Length Ladder (M) |
Weight (kg) |
|
3.1 |
9 |
|
3.4 |
9.6 |
|
3.7 |
10.3 |
|
4.0 |
10.9 |
|
4.3 |
11.6 |
|
4.6 |
12.2 |
|
4.9 |
12.9 |
|
Extension Ladder (M) |
Weight (kg) |
|
2.0-3.2 |
11.8 |
|
2.3-3.8 |
13.1 |
|
2.6-4.4 |
14.4 |
|
2.9-5.0 |
15.3 |
|
3.2-5.6 |
16.6 |
|
3.5-6.2 |
18.1 |
|
3.8-6.8 |
19.3 |
|
4.1-7.4 |
20.6 |
|
4.4-8.0 |
21.9 |
|
4.7-8.6 |
23.2 |
|
5.0-9.2 |
24.5 |
